Slant Bed Lathes

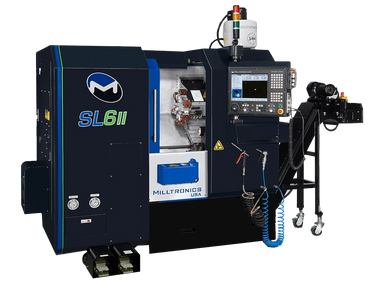

The SL6-II is equipped with a 6″ 3-jaw chuck, offering a maximum turning diameter of 12″ and a maximum turning length of 13″. It features a robust 17 HP spindle motor capable of reaching speeds of up to 6,000 RPM. Additionally, it comes standard with a 12-station auto turret for enhanced machining flexibility and efficiency.

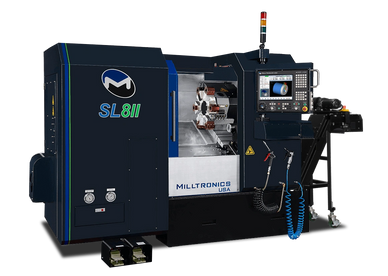

The SL8-II features an 8″ 3-jaw chuck, enabling a maximum turning diameter of 14″ and a maximum turning length of 20.7″. With a spindle bore of 3.2″, it accommodates various machining needs. This model is equipped with a powerful 22 HP spindle motor capable of reaching speeds up to 4,000 RPM. It comes standard with a 12-station auto turret for efficient tool changes. Optional features include a chip conveyor, tailstock, and tool presetter, providing additional customization based on specific requirements.

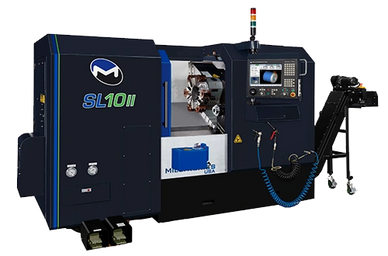

 Elevate your machining capabilities with the SL10-II, equipped with a 10″ 3-jaw chuck and a substantial 3.74″ spindle bore. This lathe offers a maximum turning length of 29.9″, providing versatility for various applications. The SL10-II is powered by a robust 30 HP spindle motor and features a turret with 12 tools for efficient machining processes. Optional enhancements include a chip conveyor, tailstock, parts catcher, and tool presetter, offering flexibility and customization to suit specific machining requirements.
