EDM HOLE DRILLING MACHINES

TITAN EDM Hole Drilling Machines

Titan International is a New York based company offers a high quality line of Small Hole EDM Drill Machines, including turnkey solutions for any project no matter the size. Titan's commitment to continuous improvement gives our customers an advantage over the competitors when they partner with us for their business needs.

TITAN EDM 5-Axis Driller 10 hour Unattended Time Lapse

 Titan International Sales Force 30 CNC small hole EDM drill with 10 hour unattended run time.  The Titan Force 30 5-Axis driller features a robust CNC control and offers standard G&M code programming along with canned cycles for easy programming.

TITAN FORCE SERIES - MADE IN THE USA

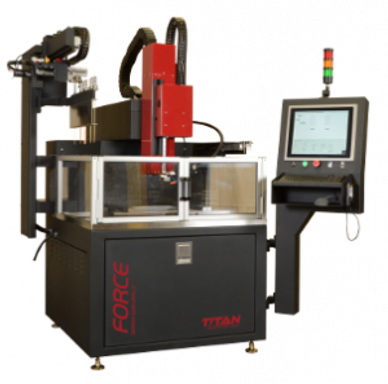

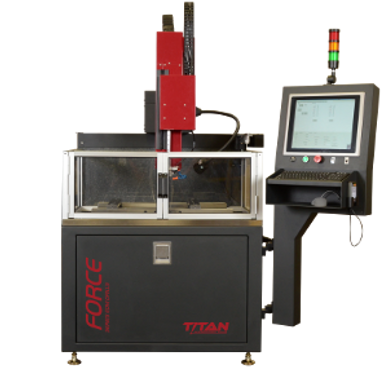

Titan Force 30

The Titan Force 30 is a full featured CNC small hole EDM drill. This powerful CNC control offers standard G&M code programming along with canned cycles for easy programming.


Quick Specs

  • Electrode capacity from .001″ to .250″
  • 70A peak power supply, fine amperage control
  • Travel (X, Y, Z): 16″ x 12″ x 16″
  • Open work height of 18″ to 24″
  • 1500lb weight capacity



Titan Force 60

The Titan Force 60 is a full featured CNC small hole EDM drill. This machine is the big brother of the Titan Force 30, offering the same powerful CNC control with a larger travel.


Quick Specs

  • Electrode capacity from .001″ to .250″
  • 70A peak power supply, fine amperage control
  • Travel (X, Y, Z): 24″ x 16″ x 16″
  • Open work height of 18″ to 24″
  • 1500lb weight capacity

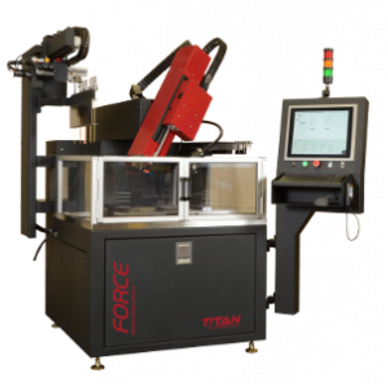

Titan Force 90

The Titan Force 90 is a full featured CNC small hole EDM drill. This machine is available in 2 different size travels and offers applications requiring rotary tables, indexers and tilting drill heads.


Quick Specs

  • CNC industrial motion control (up to 8 axis)
  • Automatic electrode/guide changers for automation
  • Built-in filtration/DI system
  • Available in travels (X, Y, Z): 16″ x 12″ x 16″ and 24″ x 16″ x 16″
  • Complex 6 axis machine available with tilting head and rotary tables: A (tilt head) B (rotary tilt) C (indexing turn)

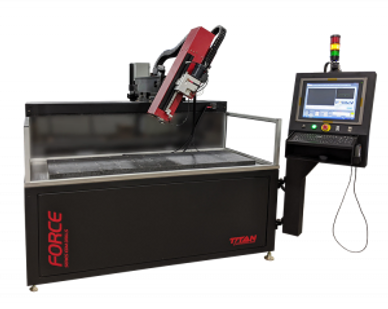

Titan Force 1600



The Titan Force 1600 is a full featured CNC small hole EDM drill. This machine is specialty built for large parts requiring larger travels.


Quick Specs

  • CNC industrial motion control (up to 8 axis)
  • Automatic electrode/guide changers for automation
  • Built-in filtration/DI system
  • Travel (X, Y, Z): 53″ x 16″ x 16″”
  • Complex 6 axis machine available with tilting head and rotary tables: A (tilt head) B (rotary tilt) C (indexing turn)

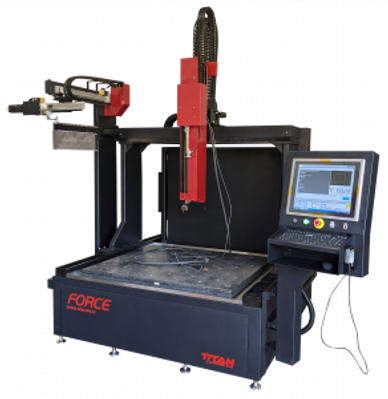

Titan Force 4240

Titan Force 5360

The Titan Force 4240 is a full featured CNC small hole EDM drill. This machine is specialty built for large parts requiring larger travels.


Quick Specs

  • CNC industrial motion control (up to 8 axis)
  • Automatic electrode/guide changers for automation
  • Built-in filtration/DI system
  • Travel (X, Y, Z): 42″ x 40″ x 40″
  • Max work height of 40″
  • Max work weight of 5,000lbs
  • Complex 6 axis machine available with tilting head and rotary tables: A (tilt head) B (rotary tilt) C (indexing turn)

Titan Force 5360

Titan Force 5360

The Titan Force 5360 is a full featured CNC small hole EDM drill. This machine is specialty built for large parts requiring larger travels.


Quick Specs

  • CNC industrial motion control (up to 8 axis)
  • Automatic electrode/guide changers for automation
  • Built-in filtration/DI system
  • Travel (X, Y, Z): 53″ x 60″ x 40″
  • Max work height of 40″
  • Max work weight of 5,000lbs
  • Complex 6 axis machine available with tilting head and rotary tables: A (tilt head) B (rotary tilt) C (indexing turn)

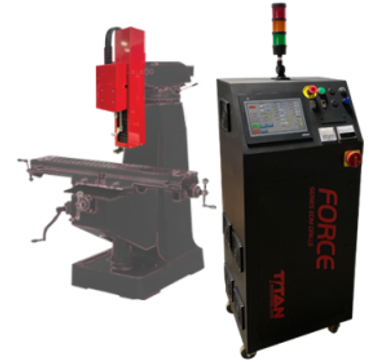

Fully Automated EDM Drilling Attachment

Quick Specs

  • Turn any piece of equipment into a CNC EDM drill
  • 70 amp peak power supply
  • .004” – .250” electrode capacity
  • Customizable touch screen HMI display
  • Onboard PLC I/O for unattended operation
  • Small footprint with roll-around design
  • Mount the EDM head to any machine to instantly create a CNC EDM drill
  • Perfect for mills, machining centers, or standalone EDM drill cells

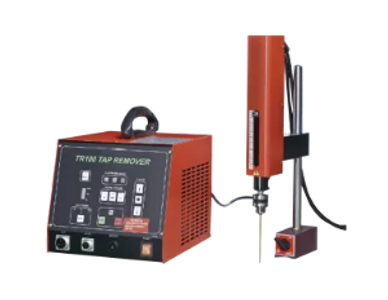

Titan Tap Remover



The Titan Tap Remover is a light, compact and portable design allowing it to be moved and used anywhere in your shop. Simple set-up and operation allows for easy removal of taps anywhere.


Quick Specs

  • Electrode capacity from .060″ to .500″
  • +/-  30° degree tilting drill head for maximum flexibility
  • 110VAC input power
  • Uses tap water

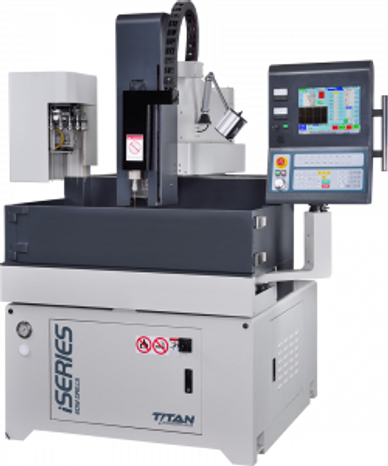

TITAN i series - import line

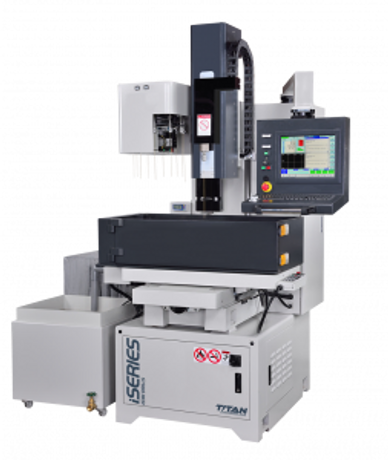

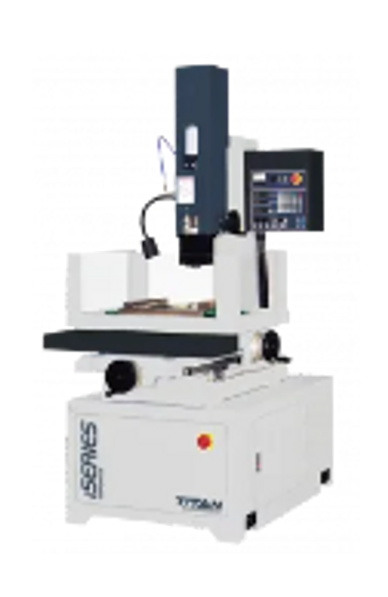

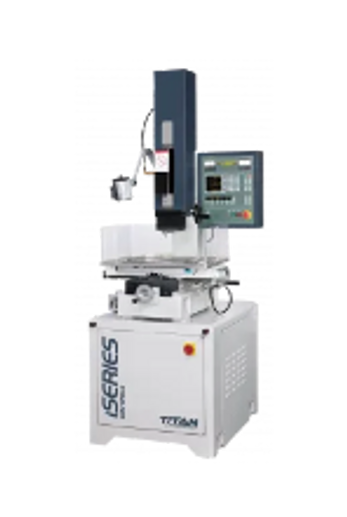

Titan i25


Quick Specs



  • Manual X/Y with linear glass scales and DRO
  • Built-in filtration/DI system
  • Cutting technology storage database
  • Travel (X, Y, Z): 10″ x 8″ x 8″



Titan i25s

Quick Specs



  • Manual X/Y with linear glass scales and DRO
  • Built-in filtration/DI system
  • Cutting technology storage database
  • Travel (X, Y, Z): 16″ x 12″ x 16″

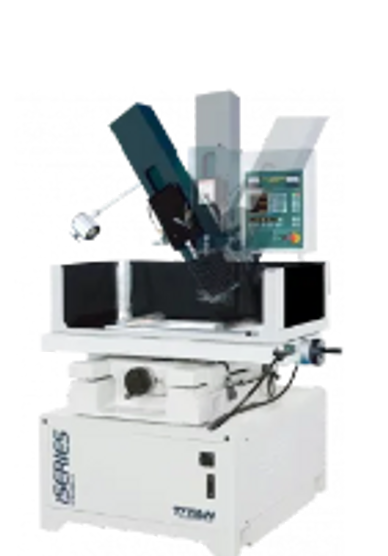

Titan i25t



Quick Specs



  • Manual X/Y with linear glass scales and DRO
  • Built-in filtration/DI system
  • Cutting technology storage database
  • Travel (X, Y, Z): 16″ x 12″ x 16″
  • A axis 45° Tilting Drill Head

Titan i40c

Quick Specs



  • Flexible PC based CNC motion control
  • Built-in filtration/DI system
  • Travel (X, Y, Z): 16″ x 12″ x 16″
  • Open work height of 18″
  • 1000lb weight capacity

Titan i60c

Titan i60c

Quick Specs



  • Flexible PC based CNC motion control
  • Built-in filtration/DI system
  • Travel (X, Y, Z): 24″ x 16″ x 16″
  • Open work height of 18″
  • 1500lb weight capacity

Download full specifications here

Titan-Force-Catalog (pdf)

Download

iSERIES ONLINE BROCHURE (pdf)

Download
