Milltronics vm series 3-AXIS MILLING MACHINES

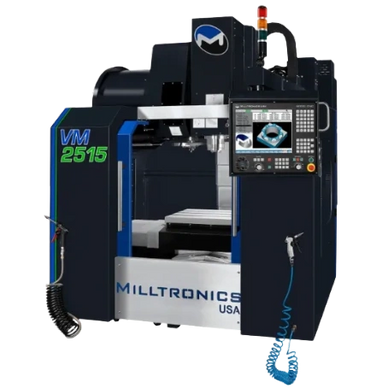

The Milltronics VM2515 milling machine features a 25 x 15 x 20-inch travel capacity, a 30 x 16-inch table working surface with a maximum weight of 3140 lbs, a BIG-PLUS® ISO No. 40 spindle taper operating at a maximum speed of 10,000 RPM and 15/10 HP, a 24-tool capacity automatic tool changer with CT40 tool shank and MAS 60 retention knob, a rapid traverse rate of 945 IPM, and general specifications including a machine weight of 6200 lbs, a height of 101.5 inches, a footprint of 82.5 x 97.6 inches in nominal operating conditions, and power requirements of 15 KVA / 38 Amps at 208-240 Volts / 3 Phase.

The Milltronics VM3018 milling machine specifications include a 30 x 18 x 20-inch travel capacity, a 34 x 18-inch table working surface with a maximum weight of 3770 lbs, a BIG-PLUS® ISO No. 40 spindle taper operating at a maximum speed of 10,000 RPM and 20/15 HP, a 24-tool capacity automatic tool changer with CT40 tool shank and MAS 60 retention knob, a rapid traverse rate of 945 IPM, and general specifications such as a machine weight of 9000 lbs, a height of 101.5 inches, a footprint of 92.7 x 111.7 inches in nominal operating conditions, and power requirements of 22 KVA / 54 Amps at 208-240 Volts / 3 Phase.

The Milltronics VM4020 milling machine specifications include a 40 x 20 x 20-inch travel capacity, a 46 x 20-inch table working surface with a maximum weight of 3770 lbs, a BIG-PLUS® ISO No. 40 spindle taper operating at a maximum speed of 10,000 RPM and 20/15 HP, a 24-tool capacity automatic tool changer with CT40 tool shank and MAS 60 retention knob, a rapid traverse rate of 945 IPM, and general specifications such as a machine weight of 9100 lbs, a height of 101.5 inches, a footprint of 97.7 x 111.7 inches in nominal operating conditions, and power requirements of 22 KVA / 54 Amps at 208-240 Volts / 3 Phase.

The Milltronics VM5020 milling machine specifications include a substantial capacity with a 50 x 20 x 20-inch travel, a 52 x 20-inch table working surface supporting a maximum weight of 3770 lbs, a BIG-PLUS® ISO No. 40 spindle taper operating at a maximum speed of 10,000 RPM with 20/15 HP power and 75 ft-lbs torque, a 24-tool capacity automatic tool changer featuring CT40 tool shank and MAS 60 retention knob, a rapid traverse rate of 945 IPM, and general specifications such as a machine weight of 9400 lbs, a height of 101.5 inches, and a footprint of 130 x 111.7 inches in nominal operating conditions. Power requirements include 22 KVA / 54 Amps at 208-240 Volts / 3 Phase. These features collectively contribute to the machine's capability for precision milling across a range of applications in industrial settings.

The Milltronics VM5020EZ milling machine is characterized by its 50 x 20 x 20 inches travel capacity, 52 x 20-inch table with a 2000 lbs weight capacity, BIG-PLUS® ISO No. 40 spindle with a maximum speed of 10,000 RPM and 20/15 HP, "Extra Z travel" functionality extending spindle-to-nose distance from 9.9 to 29.9 inches, a 24-tool automatic tool changer with CT40 tool shank and MAS 60 retention knob, a rapid traverse rate of 945 IPM, and general specifications including a machine weight of 9600 lbs, a height of 107.3 inches, and a footprint of 130 x 111.7 inches in nominal operating conditions, powered by 22 KVA / 54 Amps at 208-240 Volts / 3 Phase.

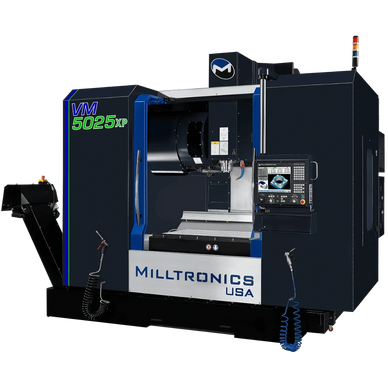

 The Milltronics VM5025XP milling machine, part of the XP Series, is distinguished by its "Extra Power" design, featuring a 50 x 25 x 24-inch travel, a 54 x 25-inch table with a 3000 lbs weight capacity, and a robust BIG-PLUS® ISO No. 50 spindle taper with a maximum speed of 8000 RPM and 35/25 HP power, emphasizing enhanced rigidity with linear cross roller guides, direct-coupled ballscrews for faster response, and dual-wound spindle motors for accelerated performance and increased torque. The machine incorporates a 30-tool automatic tool changer with CT50 tool shank and MAS 60 retention knob, and its motion capabilities include a rapid traverse rate of 1000/787 IPM. The XP Series is further characterized by a heavy-duty belt drive spindle, additional standard features such as a coolant ring and washdown system, lift-up chip conveyor, and height adjustment on the control. General specifications include a machine weight of 29100 lbs, a height of 121.8 inches, and a footprint of 127.8 x 125.7 inches (165.2 inches with conveyor) in nominal operating conditions, with power requirements of 41 KVA / 102 Amps at 208-240 Volts / 3 Phase.

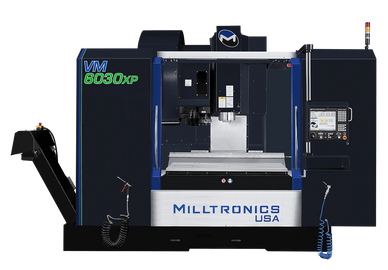

 The Milltronics VM6030XP milling machine is a robust machining center with a 60 x 30 x 24-inch travel, a 66 x 30-inch table, a BIG-PLUS® ISO No. 50 spindle taper operating at a maximum speed of 8000 RPM with 35/25 HP power and 365 ft-lbs torque, a 30-tool automatic tool changer supporting CT50 tool shanks, and featuring a rapid traverse rate of 1000/787 IPM, designed for efficiency and power in a variety of machining applications.

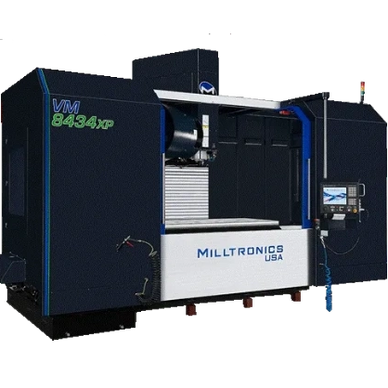

 The Milltronics M8434XP is a powerful 3-axis vertical machining center with an 84 x 34 x 30-inch travel, an 86 x 34-inch table supporting up to 4750 lbs, a BIG-PLUS® ISO No. 50 spindle reaching 8000 RPM with 35/25 HP power and 365 ft-lbs torque, a 32-tool automatic tool changer with CT50 tool shanks, and a rapid traverse rate of 709/530 IPM, designed for efficiency and performance in demanding machining applications, featuring a substantial machine weight of 37260 lbs, a height of 146.4 inches, and a footprint of 203.1 x 165.4 inches (230.1 inches with conveyor) in nominal operating conditions, with power requirements of 43 KVA / 107 Amps at 208-240 Volts / 3 Phase.
